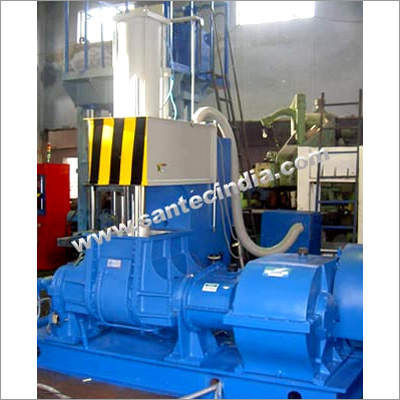

Dispersion Kneader

Dispersion Kneader
Dispersion Kneader
Product Code : 43
Product Description

Dispersion Kneader

Relying on our wide experience and knowledge in this sector, we are counted amongst the top most leading and reputed manufacturers of Dispersion Kneader. These kneaders are used in for natural rubber and synthetic rubber mastication. Our offered range of kneader machines is widely renowned for the key features such as compact structure, long operational life and maintenance free quality. Promising on time delivery of the entire range, Dispersion Kneader is available at diminutive prices in the market.

Application :

Santec's Dispersion kneaders are used widely for the following applications:
  • Rubber Compounds & End Products
    Natural Rubber, Synthetic Rubber Mastication of NR, IIR, SBR, CR, EPDM, Fluorine Rubber, Silicone Rubber. Rubber Tires, Packing Gaskets, Hose, Belts, Shoe Sole, Sponge, Electric Wire Covering, Casters, Golf Balls, Oil Seal, Weather Strips, Water Proof Sheet, EVA, Thread Compound Battery Containers , tubes ,Conveyor belts ,Silicone rubber etc
  • Plastic Compounds & End Products
    HDPE, LDPE, PP, PVC, ABS, PS, EVA Thermoset plastics compounds & profiles wire covering, BMC etc.

Salient Features :

Construction

Mixing Chamber :
The mixing chamber is made from alloy steel in the shape of 'W' through which the rotors are assembled. The contact surface of the chamber is stelite welded & wear resistant hard chrome plated. Special steel jacket is provided for cooling & steam for heating. The rotors are coupled with special quality rotary joints to take water or steam.

Pressure Lid :
Pressure lids are made from alloy steel & is fitted with special pneumatic cylinder to press the material for uniform mixing. Wider surface area is provided which allow the ingredients to turn & move in the chamber freely. An arrangement for water or steam circulation is provided and the surface is hard chrome plated.

Dust Collector :
Dust collector is provided to collect spurt powder during mixing. The collected powder can further be used in mixing, hence saving of waste material.

Electrical Control Board :
A powder coated, dust proof electrical panel box is fitted to protect voltmeter, ampere meter, temp. indicators cum controller, contactors, timer, buzzer, emergency button, interlocking provision, on/off switches for motors, hand operated valves, overload relay etc.

Bed Plate :
The machine has common bed on which all components are arranged. The bed plates eliminate the need for any foundation.

Technical Specifications :

Models

Mixing Capacity

Power Required

Tilting Method

Tilting Angle

Exhaust Equipment

Temperature Control

Space Required

SDE-5

5Ltrs

7.5kw

2 H.P. Hydraulics

120° to 140°

0.25 H.P.

Automatic

.75x1.25Mtr

SDE-15

15Ltrs

15kw

2 H.P. Hydraulics

120° to 140°

0.5 H.P.

Automatic

.75x1.25Mtr

SDE-25

25Ltrs

30kw

3 H.P. Hydraulics

120° to 140°

1 HP

Automatic

1.2x2Mtr

SDE-35

35Ltrs

40kw

3 H.P. Hydraulics

120° to 140°

1 HP

Automatic

1.5x2.2Mtr

SDE-55

55Ltrs

55kw

3 H.P. Hydraulics

120° to 140°

1 HP

Automatic

1.8x2.6Mtr

SDE-75

75Ltrs

75kw

5 H.P. Hydraulics

120° to 140°

1 HP

Automatic

1.8x2.8Mtr

SDE-100

105Ltrs

90kw

5 H.P. Hydraulics

120° to 140°

1 HP

Automatic

2x3Mtr

SDE125

125Ltrs

110kw

5 H.P. Hydraulics

120° to 140°

1 HP

Automatic

2.3x3.3Mtr
