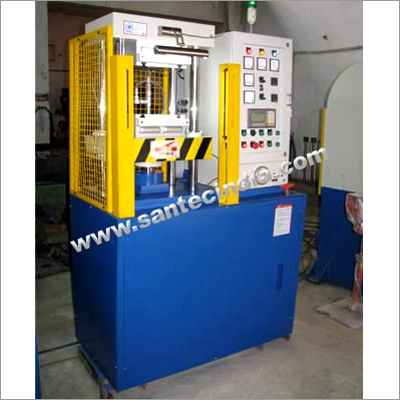

Laboratory Compression Moulding Presses

Laboratory Compression Moulding Presses
Laboratory Compression Moulding Presses
Product Code : 78
Product Description

We are able to garner a huge base of reputed clients in the domain by manufacturing and exporting a premium quality range of Laboratory Compression Moulding Presses. Manufactured at our ultramodern machining facility by using quality materials, these presses are used for compression molding of rubber and silicone. Our Laboratory Compression Moulding Presses are recognized over the global platform for their high speed operation, less power consumption and negligible maintenance. Furthermore, to attain maximum satisfaction of the patron, our range is delivered to their destination in stipulated period of time.

Features:

  • Rugged construction
  • Compact in design
  • Durable service life
  • Easy operation

Application

Santec's Laboratory Type Compression Molding Presses are widely used in following applications :
  • Engineering or Technical colleges to give training to the students . i.e. I.I.T. , NIT , Engineering Colleges etc.
  • Research & Development Laboratories i.e. Sri Ram Institute of Industrial Research , SPIC Science Foundation, Vikram Sarabhai Space Centre, Indira Gandhi Centre of Atomic Research
  • Big Rubber Industries for R &D applications i.e. MRF, JK Tyres etc.
  • Composites Molding applications, Plastic Processors etc.
  • Laminates and Plastic cards manufacturing

 Salient Features

  • A specially designed heating system ensures a high uniformity of temperature of the plates. For this reason, the press is ideal for moulding rubber & plastic sheets or samples for laboratory tests.
  • Digital PID controllers - FUJI (Japan) / WEST Make provided for accurate temp. measurements.
  • Lab type compression molding presses can also be successfully used for moulding small series of rubber or plastic parts for mass production too. The structure is very rigid & can work in 3 shifts.
  • Covered from all three side except front side for loading & unloading of mould inside the press. Safety photo guard are placed on the front side for operator's safety.
  • 4-pillar type construction hence better alignment.
  • PLC with colored touch type display unit for user friendly operation.
  • Automatic press control device for programming an automatic production cycle by inserting upto 5 degassing cycles & curing time for moulding. At the end of the programmed time, the press automatically opens and a beeper signals the end of the cycle.
  • Precision alignment and parallelism of the platens
  • Flexible controls for sophisticated compression profiling
  • Front side Table with Ball Transfer units
  • Light / Lamp for the operator

Standard Accessories

  • Electric Motor & Pump
  • Photo Safety Guard (Sick Germany)
  • Front Light for Operator's Convenience
  • PLC with coloured touch type Display screen
  • Pressure Setting through PLC with the help of Pressure Transmitter
  • Emergency Push Button
  • Two Hand Push Button Operation
  • Tower Light
  • PID type Temperature Controllers – Fuji / West make
  • Mould Bank records in PLC
  • LVDT (Potentiometer) controlled ram Movement

Optional

  • Mold/ Platen Shuttles / sliding out arrangement
  • Front side Tilting arrangement of the Top platen of the Press
  • Thyristor to control the Multi temperatures during the curing time .
  • Molded Part knockout arrangement
  • Variable Displacement Pump.
  • Data-Logger
  • Mold plate ejectors
  • Heating platens fitted with water recirculation circuit for the moulding of thermoplastic materials .
  • Added safety enclosures
  • Exhausts, enclosures for gas emissions
  • Platen temperatures to 400 degree Celsius
  • Mold thermocouple connections and temperature monitoring
  • Multiple daylight designs
  • Consolidated controls for multiple press systems
  • Vacuum pump and reservoir
  • Steam or oil platens
  • Transfer molding cylinders and controls
  • Core Pullers for middle part of the mold

Description

LCMP-10

LCMP-20

LCMP-30

LCMP-50

Capacity (Tons)

10

20

30

50

Platen Size (mm)

200x200

300x300

300x300

400x400

Construction

4-Pillars

4-Pillars

4-Pillars

4-Pillars

Ram Movement

Up Stroke

Up Stroke

Up Stroke

Up Stroke

Daylight (mm)

300

300

300

350

Stroke (mm)

300

300

300

350

Temperature (Degree Celcius)

400

400

400

400

Electrical Motor (H.P.)

3

5

5

5

Pressure Adjustment

Pr. Trans Mitter

Pr. Trans Mitter

Pr. Trans Mitter

Pr. Trans Mitter

Heating Method

Electric/Oil

Electric/Oil

Electric/Oil

Electric/Oil

Power Supply (Volts)

415/380

415/380

415/380

415/380
